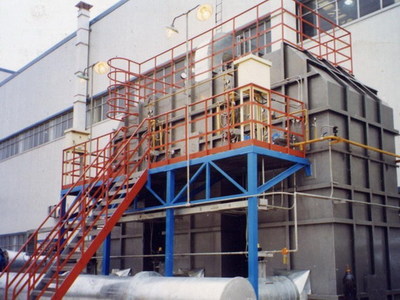

Regenerative Thermal Oxidizer

The basic principle of RTO is to make organic waste gas oxidation generating CO2 and H2O in high temperature (> 760 ℃) , thus to remove RTO adopt ceramic heat storage can make the heat get maximum recycling, heat recovery is more than 95%.

A.Technical characteristics

1,the variety of heat recovery packed bed composed of the high-performance ceramic material can recycle heat produces in the process of combustion and new use, so as to reduce energy consumption.

2, the best design——ceramic bed cold end structure can effectively reduce the waste gas valve when switching stranded

3, RTO's highest treatment can reach 200000 SCFM air (5668 Nm3 / min), VOC concentration can be as high as 100% LEL (next explosion limit) particle concentration can be as high as 0.7 g/cubic meters.

4, each regenerator is equipped with a fast switching valve, can minimize leak, and the maintenance and operation more easy.

5, the highest temperature of combustion chamber is 2000oF (1093 oC),even though stop for 1 second in this temperature won't produce mechanical components and equipment damage lines.

6, the outdoor wall of regenerative chamber uses the stainless steel materials fixed ceramic fiber with high density cotton for insulation.

B.The product application field

1, petroleum chemical industry (plastic, rubber, synthetic fiber, synthetic resin and organic chemical, etc)

2, surface coating (automobile, motorcycle, bicycle, ship, toys, home appliances, furniture, building materials, shoes, and tape, film, tape, printing, etc)

3, electronic (chip, circuit boards, electronics, electric wire and cable, etc.)

4, wood industry (man-made board, wall paper, floor, etc)

5, medicine, pesticide and dye

6, metallurgy, casting industry
